MG-LD6020
Three axis profile processing center
Applicable to various plate and aluminum profile installation hole, flow tank, lock hole, hole processing process. Vacuum adsorption can complete the processing of all holes, grooves and cutting on the same processing surface without clamping, with extremely high working efficiency. Germany PA high-quality imported computer numerical control system, with a good user interface. The working head adopts high-power air-cooled high-speed spindle to complete various drilling processing with high quality. Adopt high quality ac servo motor, ball screw, line slide track, bearing and other mechanisms to ensure that the equipment has a high machining accuracy. HSD imported local speed spindle for spindle meters. Automatic servo control of any Angle C axis, can carry out slot cutting at any Angle. C-axis Angle head device, which can install the diameter of the saw blade from 120 to 215mm. With 6-bit moving rotating tool library, automatic tool change. Equipped with protective device to fully protect the personal safety of the operator. Adopt automatic pneumatic clamping system, convenient and quick processing profile. Adopt cooling spray system to cool the cutting tool.

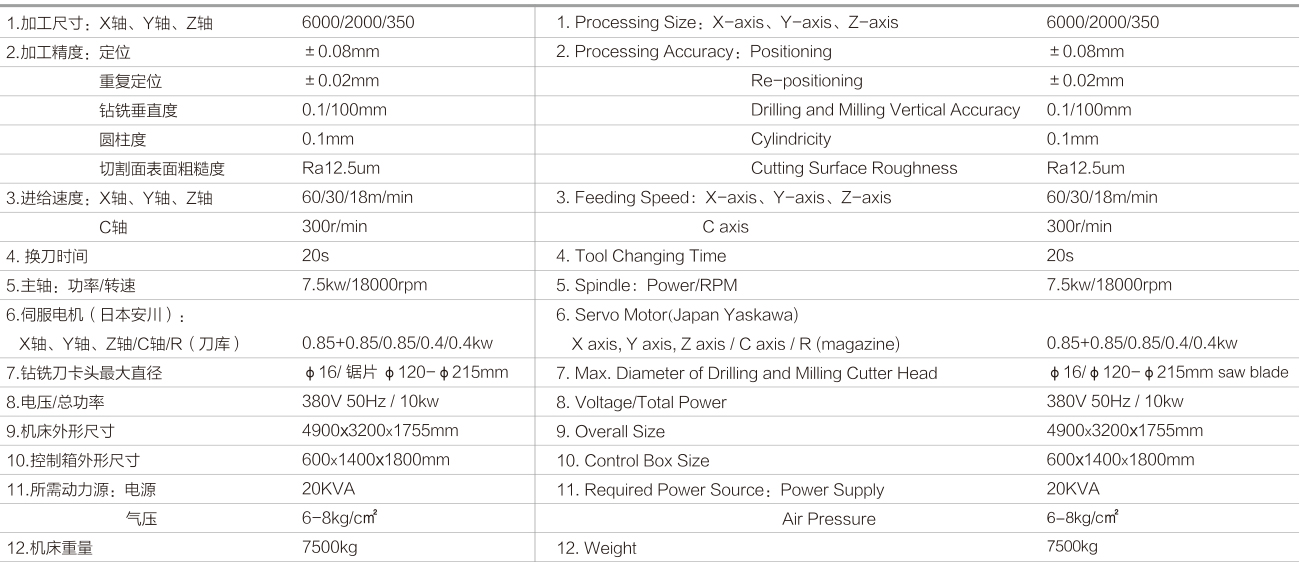

Product details parameters
